Airframe
AIRFRAME TOTAL TIME 1640 Hours
LANDINGS 2851 Cycles
INSPECTIONS
Periodical 24.04.2015
12 Month 29.06.2017
36 Month Due 05.2018
Engine
ENGINES Turbomeca Safran Arriel 1E2
Engine #1 S/N18850 1640 Hours SNEW
Engine #2 S/N 18860 1640 Hours SNEW
INSPECTIONS
800 FH inspection 26.02.2014
1200 FH inspection 26.02.2014
Avionics
4 x SMD 45 H-NVG multifunction digital display
2 x Garmin GNS 430 VHF AM NAV GPS
Garmin GTX 330 Mode S ATC Transponder
Artex Emergency Locator Transmitter ELT C406 NHM
Central Panel Display System (CPDS) consisting of two LCD displays:
- Cautions and Advisories Display (CAD) with digital indication of:
- Caution and advisory information
- Fuel quantity indication
- Vehicle and Engine Multifunction Display (VEMD) with digital indication of:
- Engine parameters (engine oil pressure, engine oil temperature)
- FLI (First Limit Indicator) for TQ, TOT, Δ N1 as analogue display
- Main gear box parameters (oil pressure, oil temperature)
- Dual ampere meter for generator; ampere meter for battery
- Dual voltmeter
- Outside Air Temperature (OAT)
Back-up conventional instruments (2 in)
- Clock
- Stand-by-horizon
- Triple (rotor and engines) RPM-indicator
- Air speed indicator
- Altimeter
Warning unit
- Engine fire warning with fuel emergency shut-off
- Warning lights
- Aural warning (for each warning, rotor RPM, fire warning)
- Fire extinguishing system warning
- Master caution light

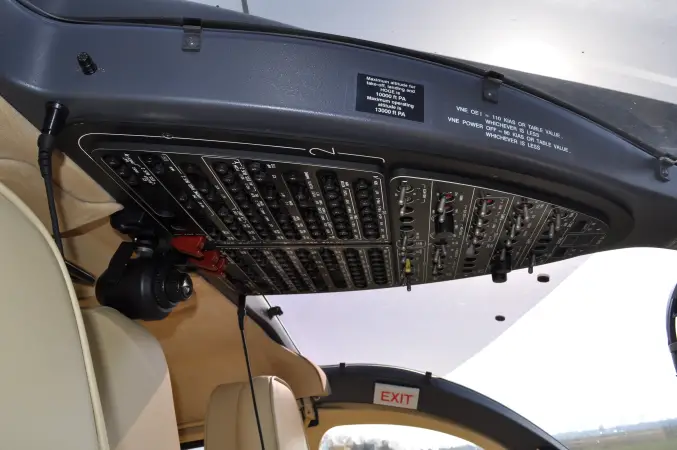

Main switch panel
- DC power control
- VARTOMS control
- Start switches
Magnetic compass
Air data system
- Dual pitot static system (elect. heated pitot tube and static port)
- 2 ADC MEGHAS sensors

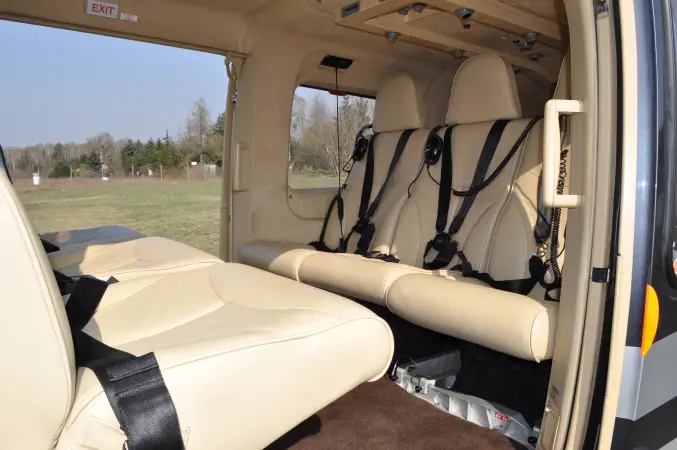

Interior

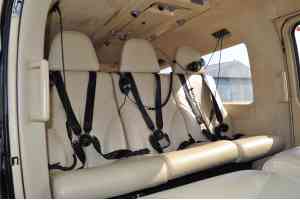

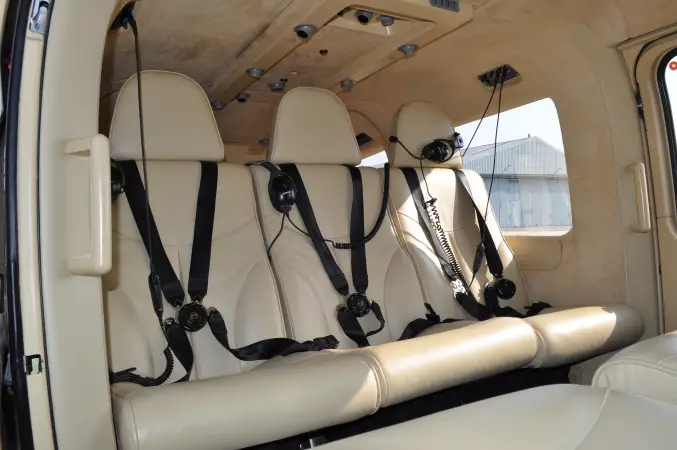

8 seat VIP configuration

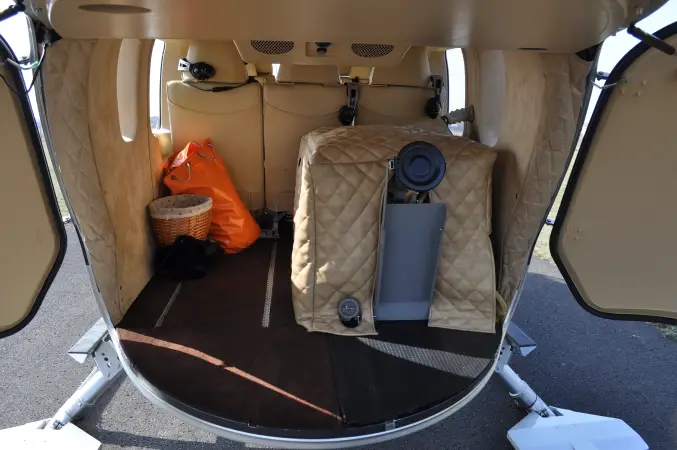

Convertible from 8 seat configuration to 6 seats with extended range additional fuel tank
Leather seats and Alcantara furnishings

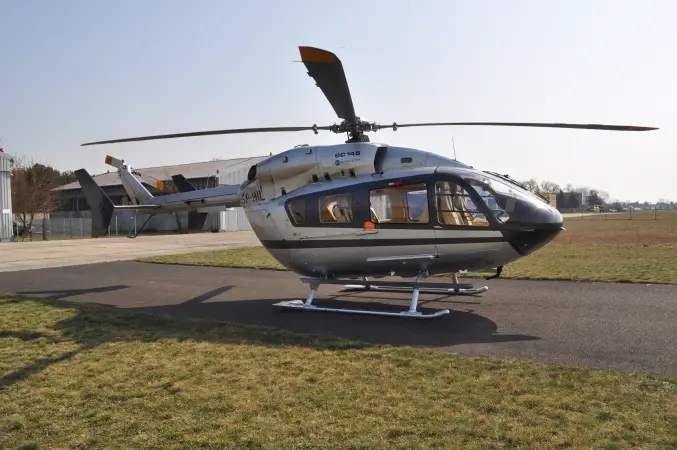

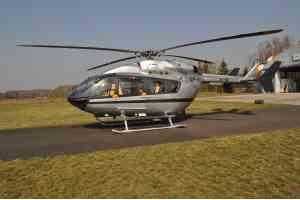

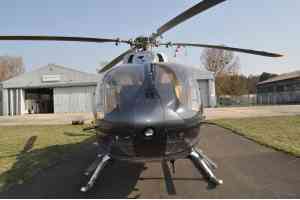

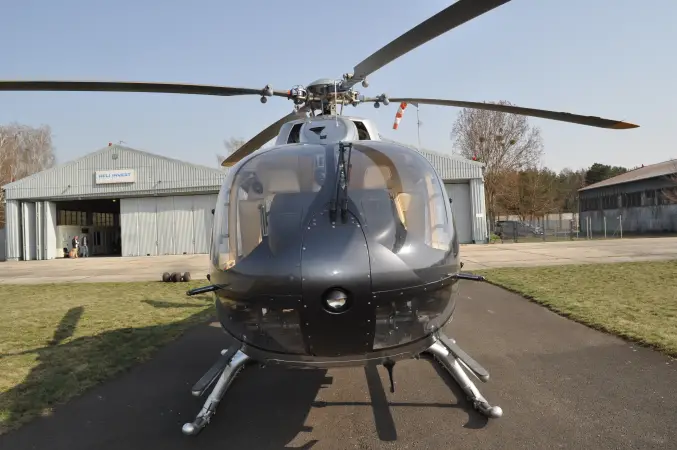

Exterior
Original grey paint, excellent condition
Maintenance
MAIN COMPONENTS REMAINING LIFE LIMIT / TBO
2 x Arriel 1E2 engines 1959 FH / 1959 FH (no calendar limit since 2018)
Main Transmission 2660 FH
Intermediate Transmission 1344 FH
Tail Rotor Transmission 2441 FH
4 x Main Rotor Blades 7370 FH / 8033 FH / 8161 FH / 11438 FH
2 x Tail Rotor Blades On condition
Additional
AIRCRAFT HISTORY
One corporate owner / operator since new
Excellent condition, always hangared
All maintenance and inspections performed in manufacturer’s authorized service center
Certified acc. to EASA Part-145.
Annual inspection 06.2017
Complete records
ADDITIONAL FEATURES
Dual controls
Autopilot (3-axis)
Bleed air heating system
Air conditioning
Windshield wiper
Bose headsets
