Airframe
Total Time: 1,910 Hours
Above times are estimated. Aircraft is actively flying.
PIPER MERIDIAN DESCRIPTION (Per Piper Specs)
- Maximum Approved Altitude: 30,000 ft
- Range with 45-Minute
- Reserve: 1,000 nm
- Maximum Cruise Speed: 260 KTAS
- Useable Fuel: 170 Gallons
- As Equipped Useful Load: 1,685.29
- Aeromech RVSM STC SA02654SE
- Full Deice Group with Annunciators
INSPECTION STATUS
- Annual Inspection Scheduled to begin at Piper Service Center Flightline TLH on 7/28/25, to be completed 8/2025
- 5-Blade Prop Installed 7/2023
Upgraded FCU Installed 2/2023
- Pilot Oxygen Mask Overhauled 2/2023
- IFR & RVSM Certifications Completed 8/2024, Next Due 8/2026
- RG41/53 Upgraded Battery (New 6/2022)
- Piper Service Center Maintained
- All Mandatory Service Bulletins Complied With
Engine
Description
Pratt & Whitney Canada PT6A-42A
500 Shaft Horsepower
Serial Number: PCE-RM0651
TTSN: 1,910 Hours
TTSHSI: 67.2 Hours
HSI Completed 3/14/25 @1,842.8 TTSN by Standard Aero.
Above times are estimated. Aircraft is actively flying.

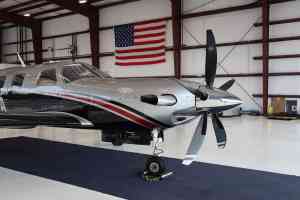

Propeller

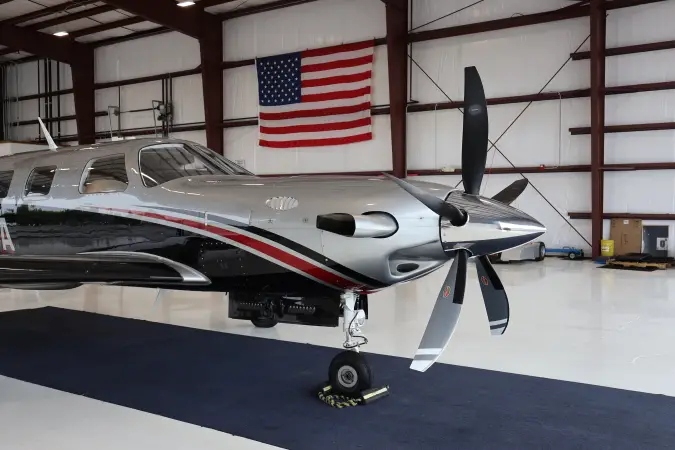

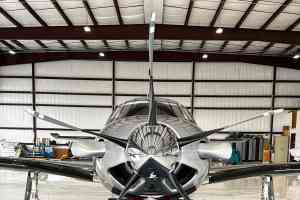

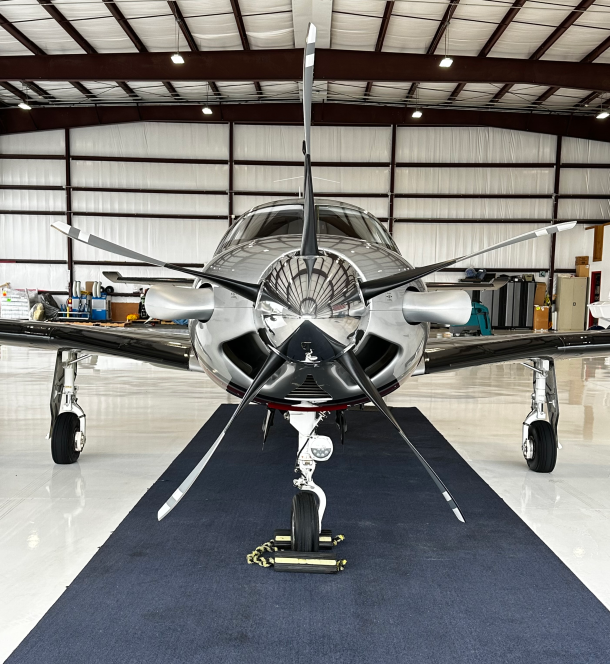

HARTZELL 5-BLADE PROP INSTALLED 7/2023
Hartzell Model: 5D3-N338A1/78D01B
TTSN: 359.3 Hours
Above times are estimated. Aircraft is actively flying.
Hartzell 5-Blade Prop Specifications:
- Hartzell 82.5” inch diameter 5-bladed, all carbon Advanced Structural Composite, Second Generation (ASC-II), swept-tip, scimitar composite blades with all new lighter-weight aluminum “Raptor®” hub propeller.
- 4000 hour / 6 year TBO
- 128.8 pounds (prop and spinner)
Replaces:
- Hartzell – 82.5” HC-E4N-3Q/E8501B-3.5 4-bladed aluminum
- 4000 hours/6-year TBO
- 144.8 pounds
- Diameter: to 82.5” Max., 81.5” min
ADVANTAGES (Per Hartzell Specifications):
- Carbon fiber construction allowing for thinner, stiffer airfoil design for better all-around performance
- 20% greater take-off acceleration
- 90 FPM better ROC at Vy
- 2-3 knots cruise speed increase
- Significantly reduced weight
- Measured take-off and climb noise number of 74.9 dB(a) complies with both FAR Part 36, Appendix G, and ICAO, Annex 16, Chapter 10 by a wide margin. 1.9 dB(a) reduction from standard airplane
- No change in RPM limitations or placards
- Strongest material available with field replaceable nickel steel leading edge erosion shield – no lost performance due to reduced diameter
- Best Warranty in the industry along with worldwide support

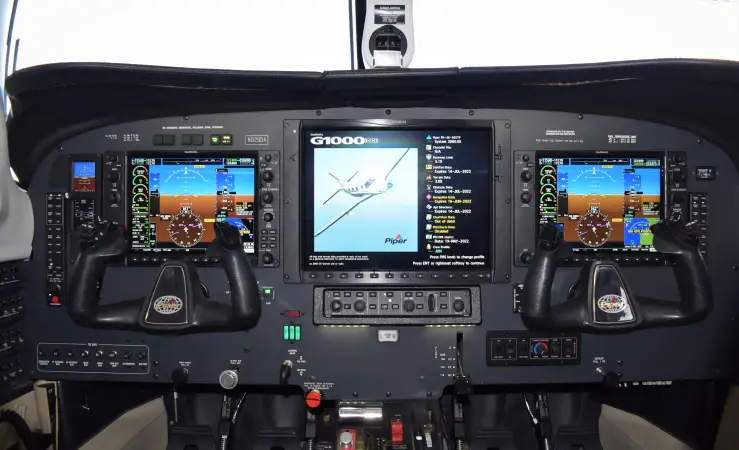

Avionics
- INTEGRATED FLIGHT DECK: Garmin G1000NXi with Synthetic Vision
- PFD (Primary Flight Displays): Dual 10” Garmin G1000NXi
- MFD (Multi-Function Displays): 15” Garmin G1000NXi
- MMC (Multi-Media Card): Flight Stream 510
- COMM/NAV (Communications/Navigation): Dual GIA 63W with WAAS, LPV, and GPS
- AP (Autopilot): GFC 700
- APC (Autopilot Controller): GMC 710
- FMSC (Flight Management System Controller): GCU 476 Keypad
- ACP (Audio Control Panels): Dual GMA 1347
- ADC (Air Data Computers): Dual GDC 74A
- XPNDR 1 (Transponder 1): Garmin GTX335 with ADS-B and TIS-B
- XPNDR 2 (Transponder 2): Garmin GTX345 with ADS-B and TIS-B
- WX RAD (Weather Radar): GWX 68 Color Radar
- STORMSCOPE: BF Goodrich WX500
- SAT RADIO/WX DR (Weather Data Receiver): GDL69A
- XM RADIO: Displayed on MFD
- SAM (Standby Attitude Module): Mid-Continent MD302 per STC SA01969SE
- TAS (Traffic Advisory System): Bendix King KTA870
- TAWS (Terrain Awareness Warning System): TAWS-B
- DIGITAL CHARTS: Jeppesen Chartview
- TES (Terminal Environment Safety): Garmin Safe Taxi

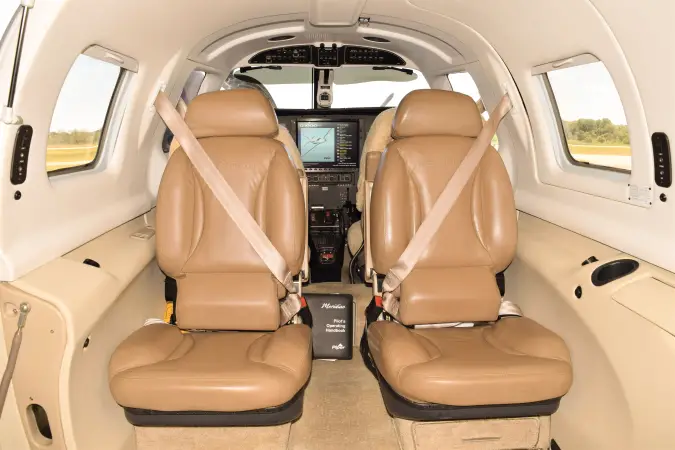

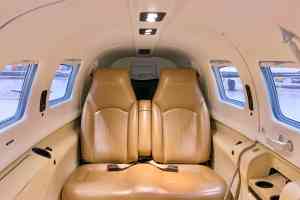

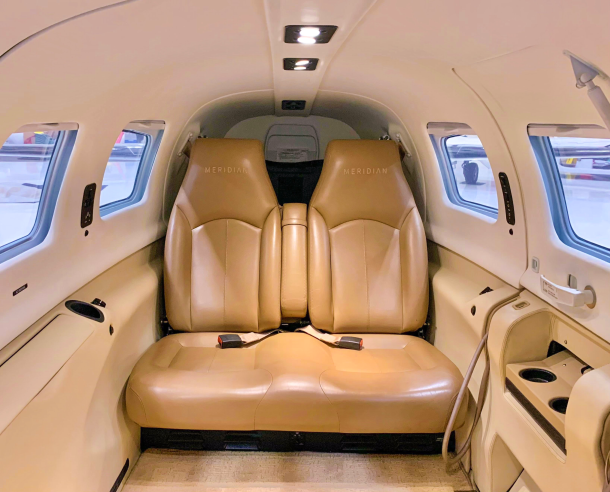

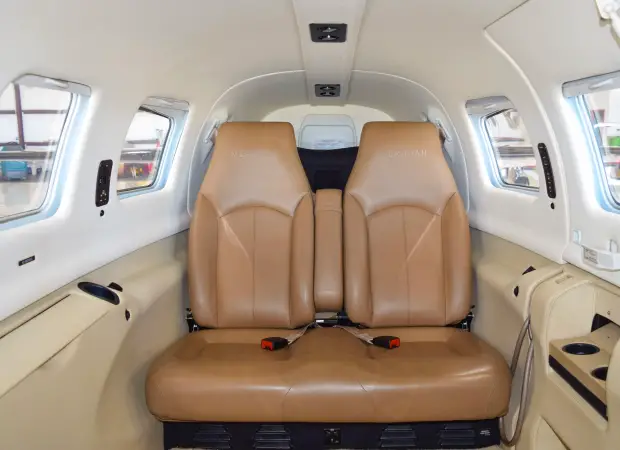

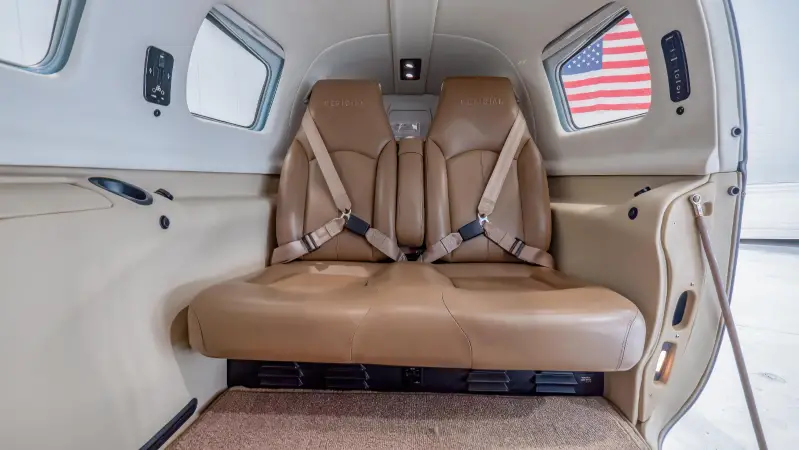

Interior

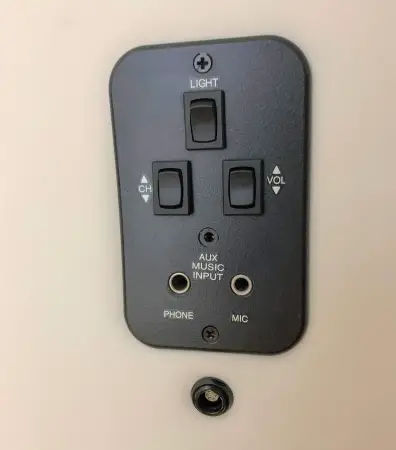

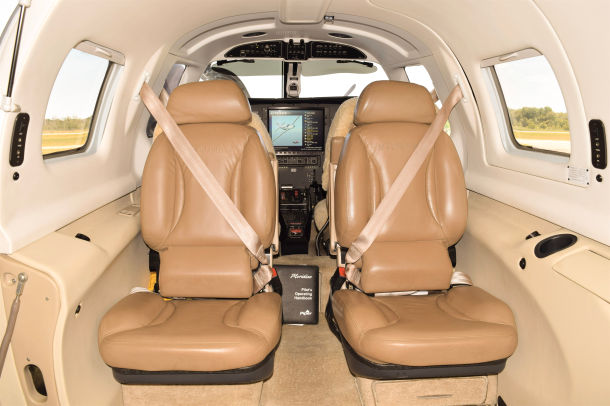

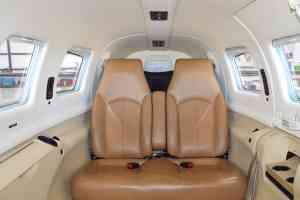

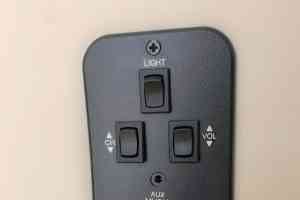

Premium Dune (Tan) Leather Interior with Coordinated Side Panels, Carpet, and Headliner. Fold-out Executive Table, Individual Reading Lights, Accent Lights, Phone/Mic/Aux Music Input Jacks. Pilot/Co-Pilot Sheepskin Covers.

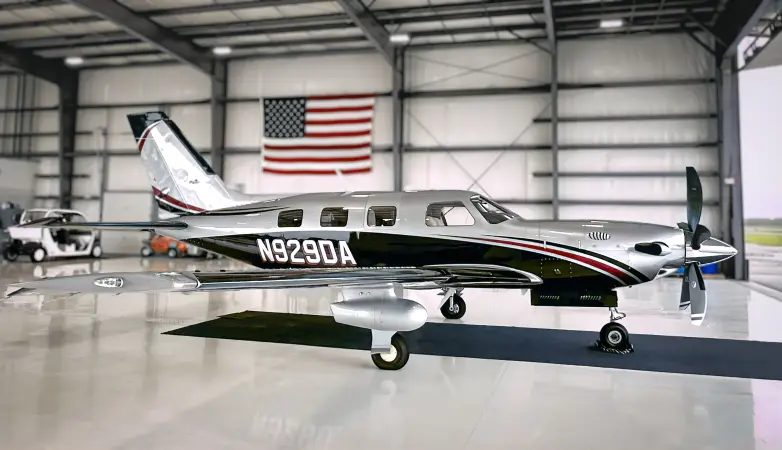

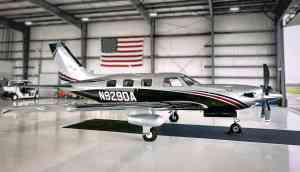

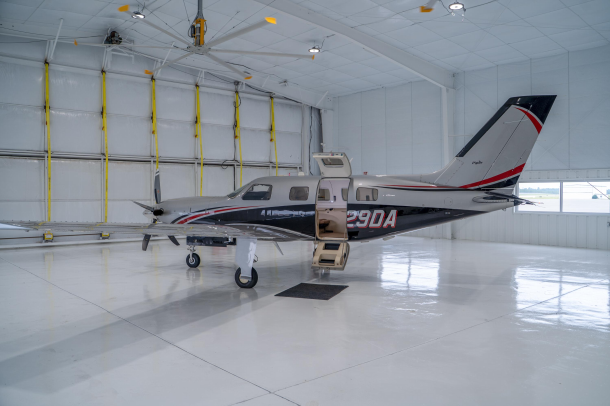

Exterior
TOP COLOR: Titanium Silver Metallic
BOTTOM BASE COLOR: Black Red Pearl
TRIM COLOR: Coral Red Pearl
Additional
- Aeromech RVSM STC SA02654SE
- Garmin G1000 NXi Upgrade per STC SA01947WI
- Flighstream 510
- Mid-Continent MD302 Standby Attitude Module STC
- RG41/53 Upgraded Battery (New 6/2022) per STC
- FCU Overhauled & Upgraded Per PWC SB 3582R5 (2/2023)
- Battery Trickle Charger
- Medco Locks
- Fold-Down Crew Chairs
- LED Taxi and Linding Lights
- Garmin Safe Taxi & Jeppesen Chartview
- Exceedance Warning System
- Crew Alerter System
- Turbine Inlet Plugs
- Stainless Steel Cowling Fasteners
- Relief Tube
- Right Storage Cabinet
- H3R Halon Fire Extinguisher
- Compressor Wash Ring
- Enhanced Rosen Sun Visors
- Tanis Battery Heater Blanket
About Duncan Aviation Aircraft Sales & Acquisitions
The Duncan Aviation Aircraft Sales & Acquisitions team is proud to offer this 2015 Piper Meridian for sale. Duncan Aviation was founded as an aircraft brokerage organization and has been working with jet and turboprop owners on the sale and acquisition of aviation assets for more than 65 years. During this time, we have developed an unparalleled network of contacts by providing service to more than 4,000 aircraft every year and maintaining relationships with nearly 60,000 aircraft owners, operators, and industry sources worldwide. These touchpoints create valuable market and business intelligence leveraged by Duncan Aviation’s Aircraft Sales & Acquisitions team on behalf of brokerage and acquisition clients around the globe.
