Airframe

Entry Into Service: 09/2002
Airframe Total Time: 4,870 Hours
Landings: 1,501 Cycles
Times current as of September 1st, 2021

AIRFRAME:
Mfr/Model: Boeing B737-DV, BBJ2
Variable Number: YD406

Engine

ENGINES: CFM International CFM56-7B27B3

Engine 1: 888608 Engine 2: 888609
4,870 Hours 4,870 Hours
1,501 Cycles 1,501 Cycles

Engine 1 & 2 First Limiter: 10,300 Cycles

Original engines installed.

APU: Honeywell 131-9B
Serial Number: P-6079
3,912 Hours
3,234 Starts

APU First Limiter: 30,000 Starts

Original APU installed.

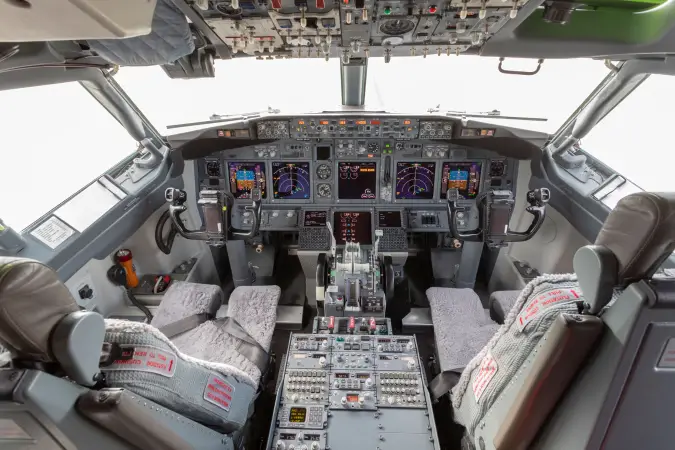

Avionics

AVIONICS HIGHLIGHTS:
TCAS 7.1 compliant with TTR-2100 installed via Boeing SB.
ADS-B OUT V2(DO-260B) compliant.
FANS-1 compliant over L-Band Satcom (MCS-7147) via Boeing SB.
Compliance with ADS-B OUT V2 (GNSS Performance Requirement).

AVIONICS:
Honeywell and Collins avionics are under programs.

ACARS: One (1) Teledyne 8400021-30-B
ADF: Dual (2) Collins ADF-900
ADL: One (1) Teledyne EADL (USB)
CVR: One (1) L3 Com 2100-1020-00
DFDAU One (1) Teledyne 2233000-815
DME: Dual (2) Collins DME-900
EGPWS: One (1) Honeywell Mark V 965-1690-055
FDR: One (1) L3 Com 2100-4043-00
FMC: Dual (2) Smiths 176200-01-01
HF: Dual (2) Collins HFS-900
HGS: One (1) Flight Dynamics Heads-Up Guidance System Model HGS-4000
RADAR: One (1) Weather Radar Collins WRT-701X
SBAS GPS: Dual (2) Collins GLU-2100
TCAS: One (1) TCAS 7.1 Collins TTR-2100
VHF: Triple (3) Collins VHF-900B
VOR: Dual (2) Collins VOR-900
XPNR: Dual (2) Collins TPR-901

Interior

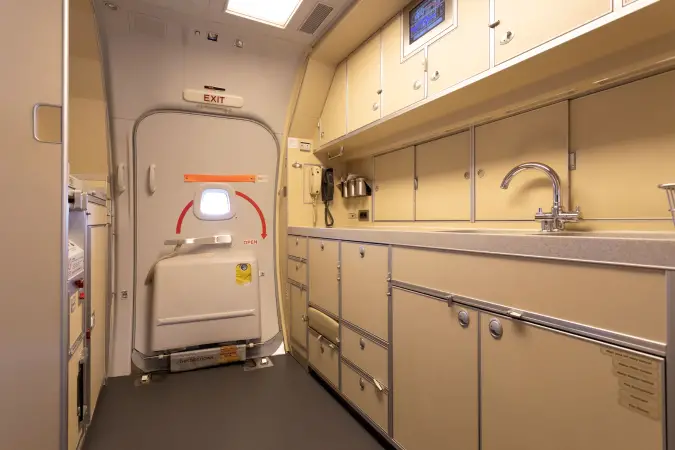

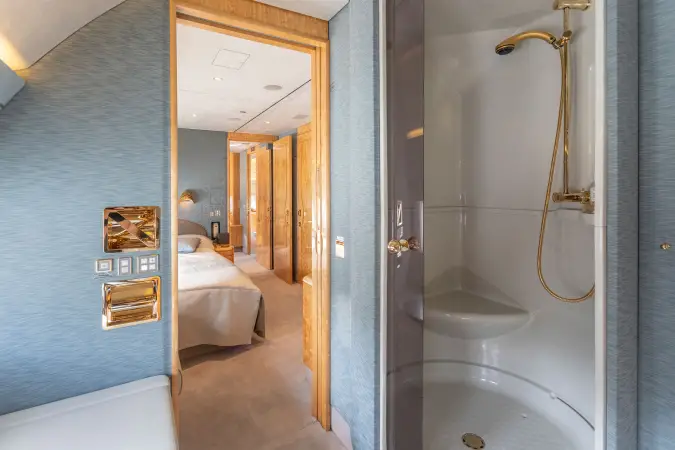

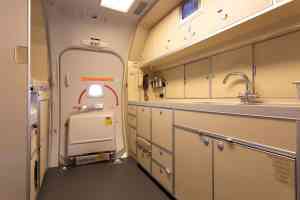

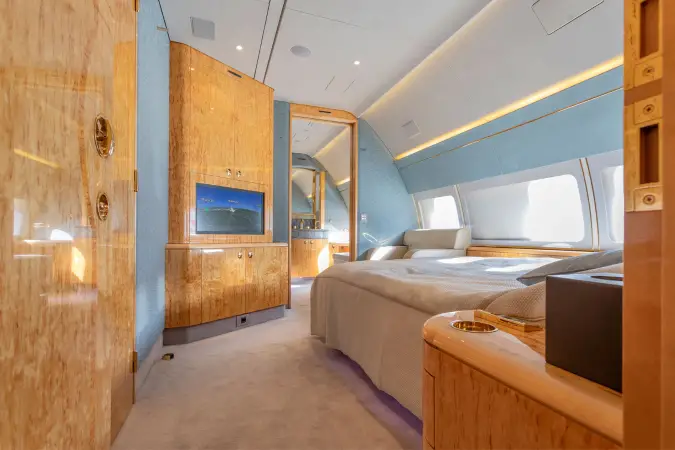

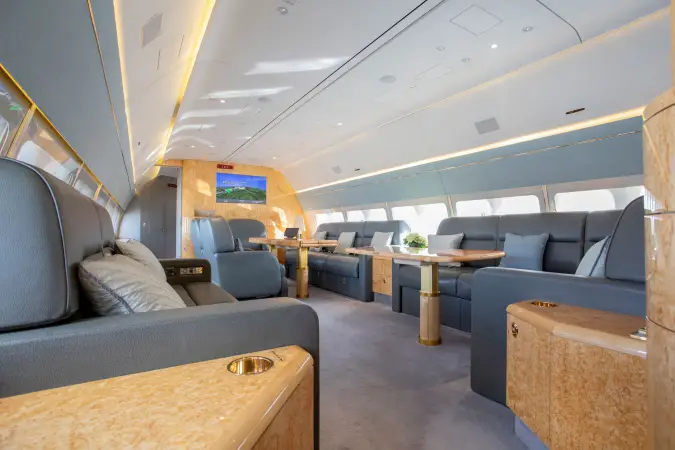

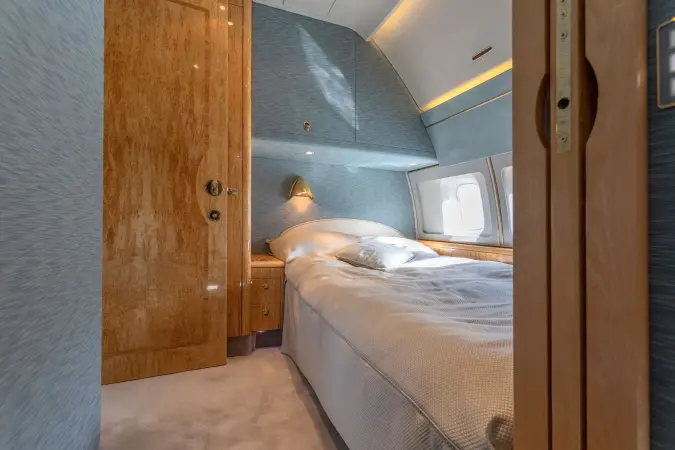

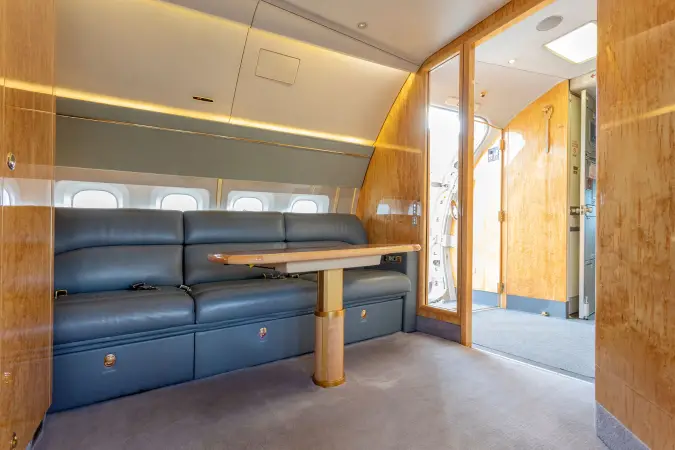

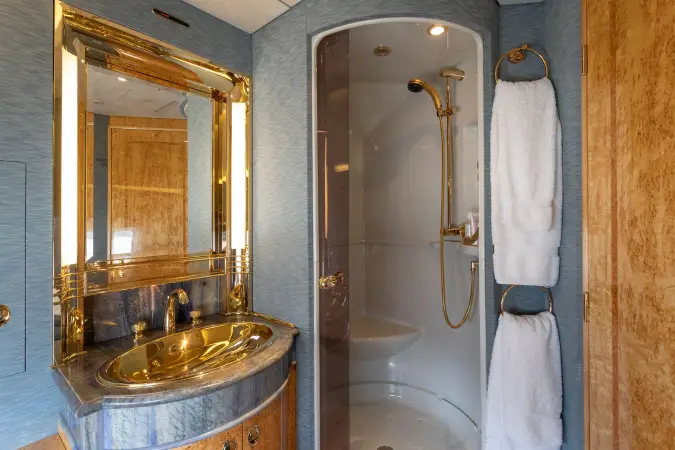

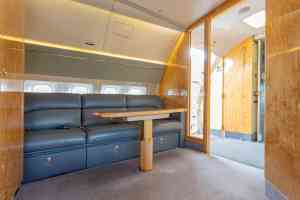

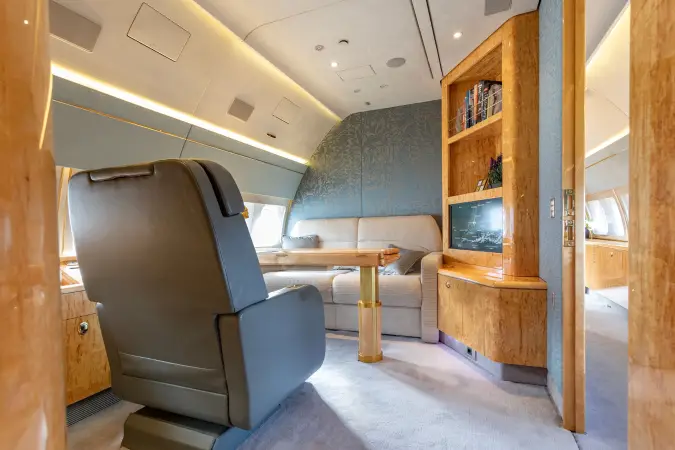

The cabin features seating for 19 with a spacious master bedroom, as well as a guest bedroom, lounge/dining room and office, along with a self-contained crew rest and forward, mid and aft lavatories.

Exterior

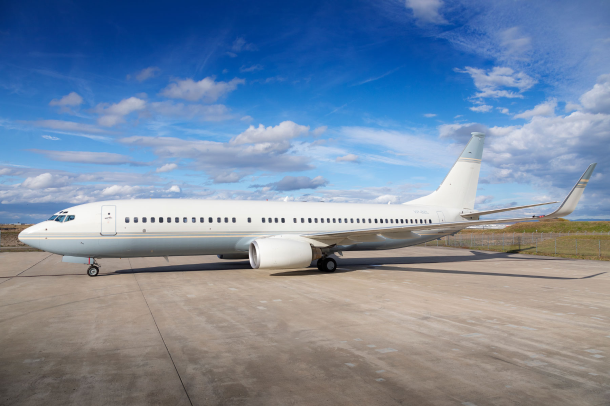

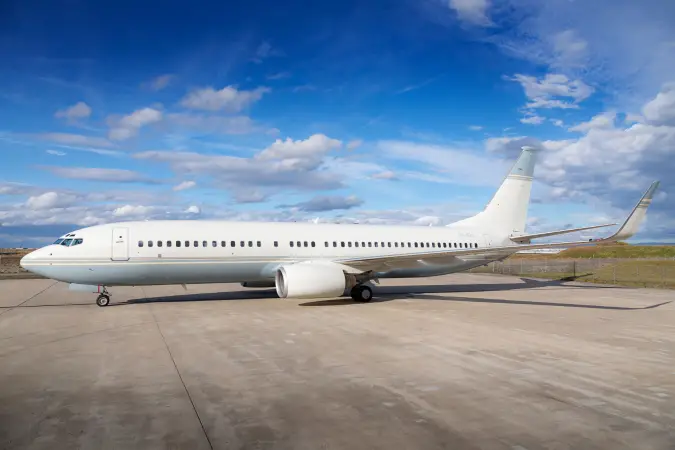

White with light blue and yellow striping.

Maintenance

MAINTENANCE:
Boeing 737 MPD (Low Utilization) Inspection Program
CAMP Maintenance Tracking
12 year check performed in February 2015 with landing gear overhaul.
Last full cabin removal in April 2019 (interval 8 years) together with aux tank removal.
Current EGT margin:
Engine 1: 30°C
Engine 2: 45°C

Additional

MAJOR MODIFICATIONS:
VVIP Interior Installation
Pats Auxiliary Fuel Tanks - 6 Ea Tanks (2 In Fwd Cargo And 4 In Aft Cargo)
Cargo Fire Suppression
Head-up Guidance HGS-4000
TIOS Antenna (Vertical Fin) Installation
Cabin Wireless Local Area Network (LAN)
ADS-B Out V2
GPS SBAS Receivers GLU-2100

CABIN ENTERTAINMENT:
Original Cabin Management System (CMS) from Lufthansa Technik.
Upgrade of IFE to Collins Venue System in 2015 (Phase I) and 2019 (Phase II).
Hi-Speed internet connection–Dual SBB Honeywell HD-710 (Honeywell satcom MCS-7147).
Airshow ASXi (included in Collins Venue IFE).

WEIGHTS:
Basic Empty Weight: 47,704KG
Max Ramp Weight: 79,242KG
Max Gross Take-Off Weight: 79,015KG
Max Flying Time: Approx 10 Hours
Max Range: Approx 4500NM
